Column Loudspeakers&Subs
DX18AP featured 18inch low-frequency transducers with high-power configuration. Profit by cabinet natural extension of the transmission line design, effectively increase and improves the low-frequency response and sensitivity, without any other increase other subwoofer extra burden can be reach to 98dB, maximum 132dB. DX15AP featured CLASS-D AMP, provided small size, light weight, high efficiency, lower exothermic characteristic. Configuration work with DXB15 to extend Low-frequency. DX18AP also featured DSP processor with processing parameters, can obtain carefully processed frequency response, corrected phase.
DX18AP
 Specification
Acoustic Performance
System Subwoofer
Frequency Range(-10dB) 30Hz-300Hz
Frequency Response(±3dB) 45Hz-250Hz
Rated Power 600W
Maximum Power 2400W
Sensitivity(1w/1m) 98dB
Maximum SPL 132dB
Loudspeakers 1x18″
X-over 120Hz/24dB/octave
Nominal Impedance 8Ω
Connections
2 x NLT4±1LF(1100W)
±2HF(600W)
CLASS-D  AMP
1  in 2 out,/out1/1100W&out2/600W  DSP independent
Physical Performance

Hoisting Way 16 Hoisting Point with M8
Size(WxDxH) 510 x 725 x 580(mm)
Weight N.W: 51kg    R.W: 56.7kg

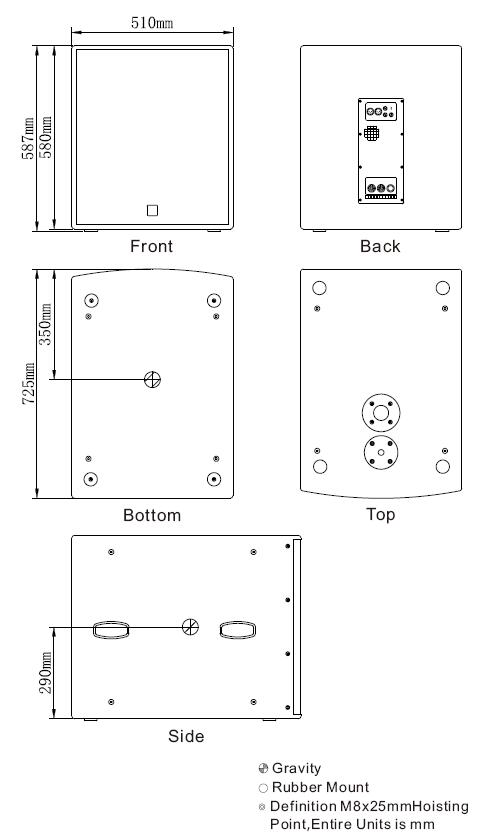

 Drawings
Technical Drawings
All information is Copyright. DU'S AUDIO CO., LTD.
JPEGDWGPDF
 Recommended Speakers
 Download
File Description Userguide
DX18AP DX18AP also featured DSP processor with processing parameters, can obtain carefully processed frequency response, corrected phase. DOWNLOAD
