Portable Loudspeakers
DX215AP featured dual 15inch low-frequency transducers with high-power configuration. Profit by cabinet natural extension of the transmission line design, effectively increase and improves the low-frequency response and sensitivity, DX215AP featured CLASS-D AMP, provided small size, light weight, high efficiency, lower exothermic characteristic. Configuration work with DX215AP to extend Low-frequency. DX215AP also featured DSP processor with processing parameters, can obtain carefully processed frequency response, corrected phase.

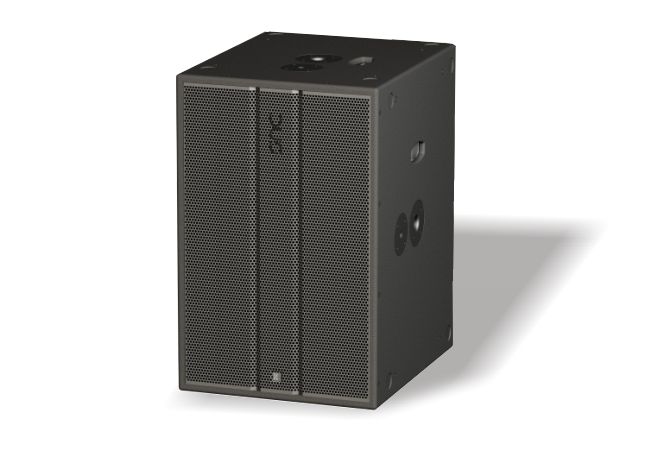

DX215AP
 Specification
Acoustic Performance
System Subwoofer
Frequency Range(-10dB) 35Hz-300Hz
Frequency Response(±3dB) 45Hz-250Hz
Rated Power 1200W
Maximum Power 4800W
Sensitivity(1w/1m) 99dB
Maximum SPL 136dB
Loudspeakers 2x15″
X-over 120Hz/24dB/octave
Nominal Impedance
CLASS-D AMP 1  in 1 out,/out1/1200W DSP independent

Physical Performance
Hoisting Way 16 Hoisting Point with M8
Size(WxDxH) 800 x 643 x 520(mm)
Weight N.W: 65kg    R.W: 70.7kg
 Drawings

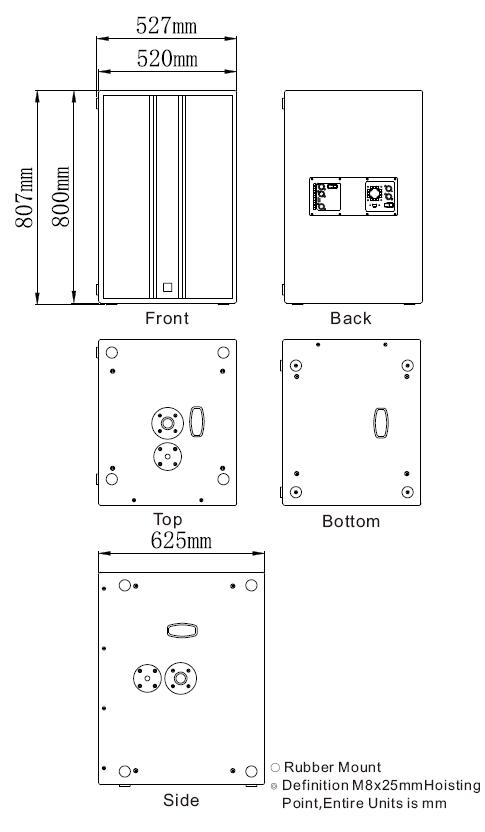

Technical Drawings
All information is Copyright. DU'S AUDIO CO., LTD.
JPEGDWGPDF
 Download
File Description Userguide
DX215AP DX215AP also featured DSP processor with processing parameters, can obtain carefully processed frequency response, corrected phase. DOWNLOAD
