AV Spaces
* 1x10″ Subwoofer;
* The Maximum SPL can be reach to 126dB;
* Cooperate with DX4.1&DX5.1,can be used for small meals,multi-functional conference room,household hi-fi stereo etc.

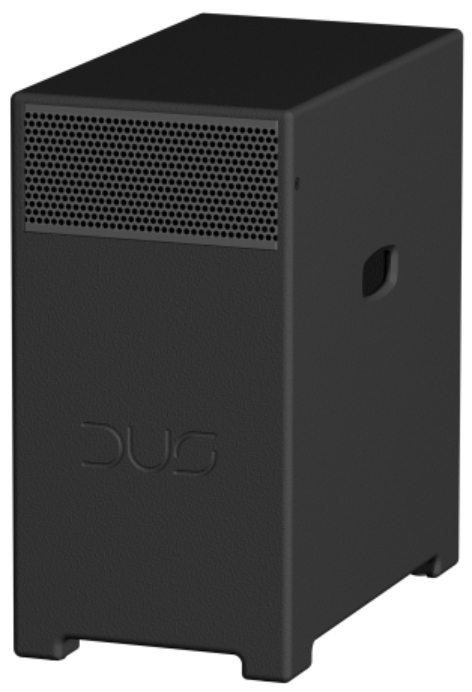

DSW10
 Specification
Acoustic Performance
System Subwoofer
Frequency Range(-10dB) 40Hz-300Hz
Frequency Range(±3dB) 50Hz-250Hz
Rated Power 300W
Maximum Power 1200W
Sensitivity(1w/1m) 95dB
Maximum SPL 126dB
Loudspeakers 1x10″
Nominal Impedance 8Ω
Connections 2xNLT4 ±1

Physical Performance

Size(WxDxH) 310 x 550 x600(mm)
Weight N.W: 26kg    R.W: 30.5kg

 Drawings
Technical Drawings
All information is Copyright. DU'S AUDIO CO., LTD.
JPEGDWGPDF
 Recommended Speakers
 Download
File Description Userguide
DSW10 Product brochure for the DSW10. DOWNLOAD
