Column Loudspeakers&Subs
DX4.4 is column full range speaker. The proprietary 4pcs 4inch Nd full range driver with higher sensitivity and power capacity available to deliver an impressive 126dB at Frequency range from 110Hz to 17KHz. DX4.4 can be widely used for small to middle size speech or music reproductions. Ideally DX4.4 should be a good choice for venues like meeting room, classroom or educations, bar, lounge, restaurant background music, sports facilities, theme park or anywhere high-quality sound distribution applications.
DSW12AP or DX15AP subwoofer recommended to work with DX4.4 for low frequency extended to below 40Hz. DSW12AP subwoofer with built-in power amplifier and DSP processor, two channel driven mode available to quick connect DX4.4 to the AUX speaker output, by recall the presets for DX4.4+DSW12AP or DX15AP from the front panel to result a better performance and stable of the system.

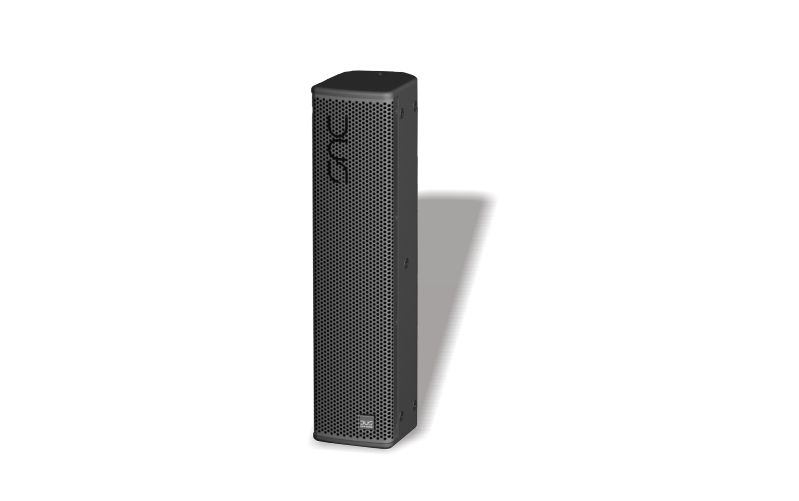

DX4.4
 Specification
Acoustic Performance
System 1-way Loudspeaker System
Frequency Range(-10dB) 110Hz-18kHz
Frequency Response(±3dB) 130Hz-17kHz
Dispersion Angle(-6dB) 80°x60°(H x V)
Rated Power 150W
Maximum Power 600W
Sensitivity(1w/1m) 98dB
Maximum SPL 126dB
Loudspeakers 4x4″ Neodymium
X-over 120Hz/24dB/octave
Nominal Impedance
Connections 2 x NLT4 ±2

Physical Performance

Hoisting Way 16 Hoisting Point with M8
Size(WxDxH) 128 x 163 x545(mm)
Weight N.W: 6kg    R.W: 8kg
 Drawings
Technical Drawings
All information is Copyright. DU'S AUDIO CO., LTD.
JPEGDWGPDF
 Recommended Speakers
 Download
File Description Userguide
DX4.4 Ideally DX4.4 should be a good choice for venues like meeting room, classroom or educations, bar, lounge, restaurant background music, sports facilities, theme park or anywhere high-quality sound distribution applications. DOWNLOAD
