Portable Loudspeakers

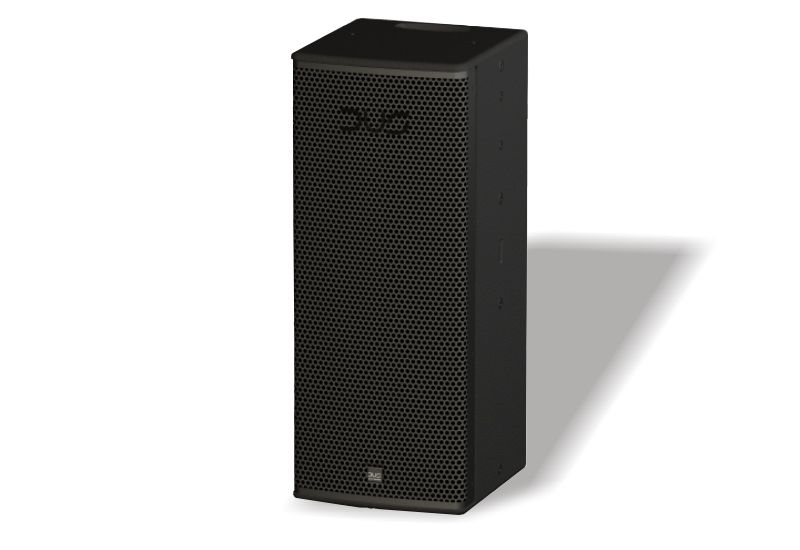

DX08AP is full range speaker featured dual 8inch ND low-mid transducers and a 4inch&3inch coaxial ND compression driver that have been designed focused on middle to small size venues. Optimized driver placement and the HF wave guide makes DX08AP speaker resulted a consistency horizontal coverage and a higher slope attenuation at vertical direction.
DX08AP speaker has built-in rigging hardware for easily setup that can be done even by only one engineer. DX08AP speaker featured DSP processor with processing parameters, can obtain carefully processed frequency response, corrected phase.

DX08AP
 Specification
Acoustic Performance
System 2-way Loudspeaker System
Frequency Range(-10dB)
70Hz-2kHz(LF)
900Hz-18kHz(HF)
Frequency Response(±3dB)
80Hz-1.8kHz(LF)
1kHz-18kHz(HF)
Dispersion Angle(-6dB) 90°x40°(H x V)
Rated Power 300W(LF)/75W(HF)
Maximum Power 1200W(LF)/300W(HF)
Sensitivity(1w/1m) 99dB(LF)/107dB(HF)
Maximum SPL 130dB(LF)/132dB(HF)
Loudspeakers
LF:2x8″ Neodymium
HF:1x3″Neodymium
X-over 1.5kHz/24dB/octave
Nominal Impedance 4Ω(LF)/8Ω(HF)
CLASS-D AMP 1  in 2 out,/out1/1100W&out2/600W  DSP independent

Physical Performance

Hoisting Way 12 Hoisting Point with M8
Size(WxDxH) 260 x 640 x 285(mm)
Weight N.W: 21kg    R.W: 24.5kg
 Drawings

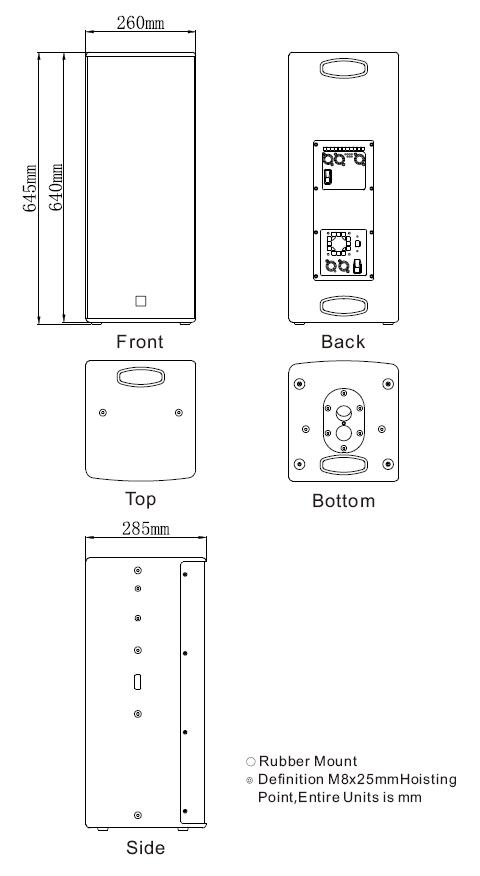

Technical Drawings
All information is Copyright. DU'S AUDIO CO., LTD.
JPEGDWGPDF
 Recommended Speakers
 Download
File Description Userguide
DX08AP DX08AP speaker featured DSP processor with processing parameters, can obtain carefully processed frequency response, corrected phase. DOWNLOAD
