Line Array Loudspeakers&Subs
* 2x5inch low-mid transducers and 1inch ND compression driver;
* The wave guide design for 100-degree X 9-degree of horizintal and vertical using;
* can be widely used for middle to small size theatre.

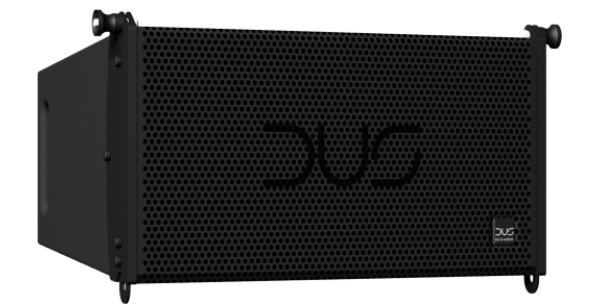

Q05
 Specification
Acoustic Performance
System 2-way line array loudspeaker
Frequency Range(-10dB) 80Hz-20kHz
Frequency Response (±3dB) 100Hz-18kHz
Dispersion Angle(-6dB) 100°x9°(H x V)
Rated Power 240W
Maximum Power 960W
Sensitivity(1w/1m) 94dB
Maximum SPL 124dB
Loudspeakers
LF:2x5″
HF:1x1″Neodymium
X-over 100kHz/24dB/octave
Nominal Impedance 16Ω
Connections 2xNLT4 ±1

Physical Performance

Hoisting Way Hoisting Point with 3
Size(WxDxH) 446 x 304.5 x219(mm)
Weight N.W: 12.2kg    R.W: 16.5kg

 Drawings

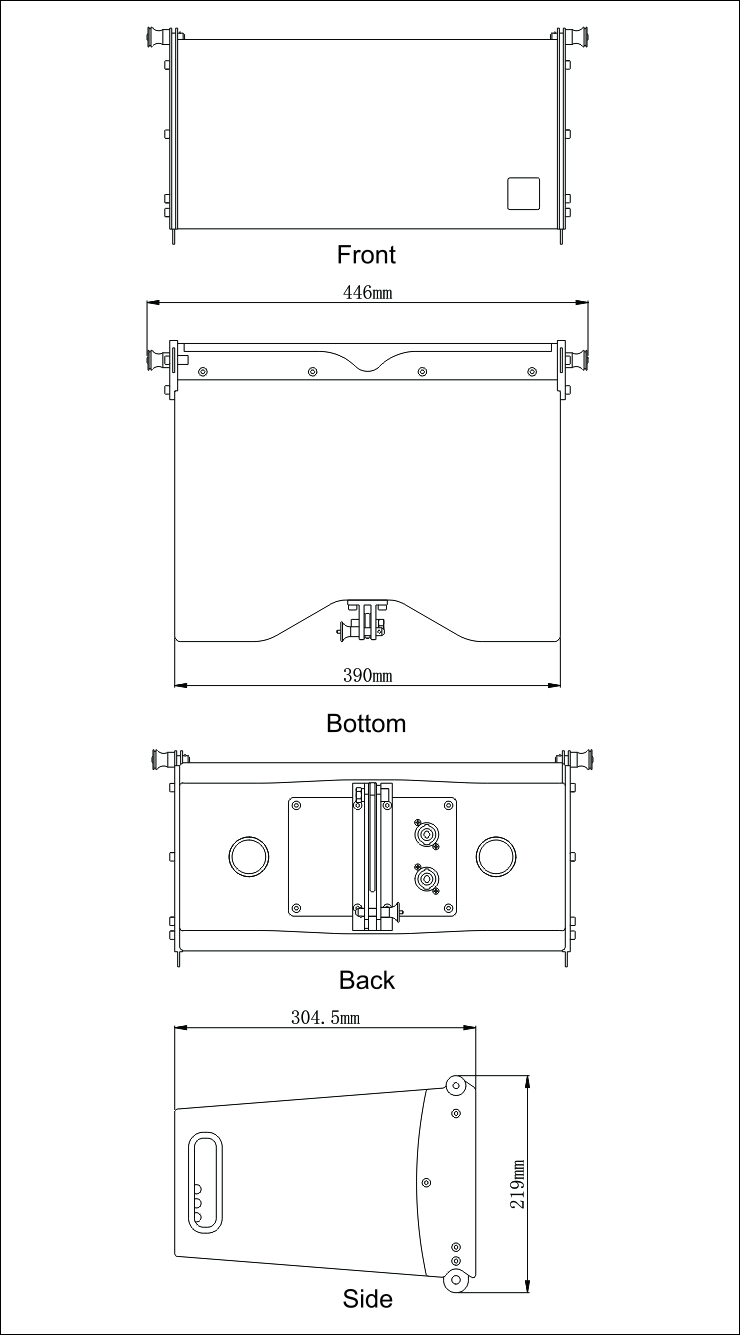

Technical Drawings
All information is Copyright. DU'S AUDIO CO., LTD.
JPEGDWGPDF
 Recommended Speakers
 Download
File Description Userguide
Q05 Product brochure for the Q05. DOWNLOAD
