Line Array Loudspeakers&Subs
* 1x18inch low-frequency transducers with high-power configuration Subwoofer;
* The Maximum SPL can be reach to 132dB;
* Can use with QX10.
QX10SW
 Specification
Acoustic Performance
System Subwoofer
Frequency Range(-10dB) 35Hz-300Hz
Frequency Response(±3dB) 45Hz-250Hz
Rated Power 600W
Maximum Power 2400W
Sensitivity(1w/1m) 98dB
Maximum SPL 132dB
Loudspeakers 1x18″
X-over 120Hz/24dB/octave
Nominal Impedance 8Ω
Connections 2xNLT4 ±1

Physical Performance

Hoisting Way Hoisting Point with 4
Size(WxDxH) 700 x 535 x623(mm)
Weight N.W: 48.4kg    R.W: 52.5kg

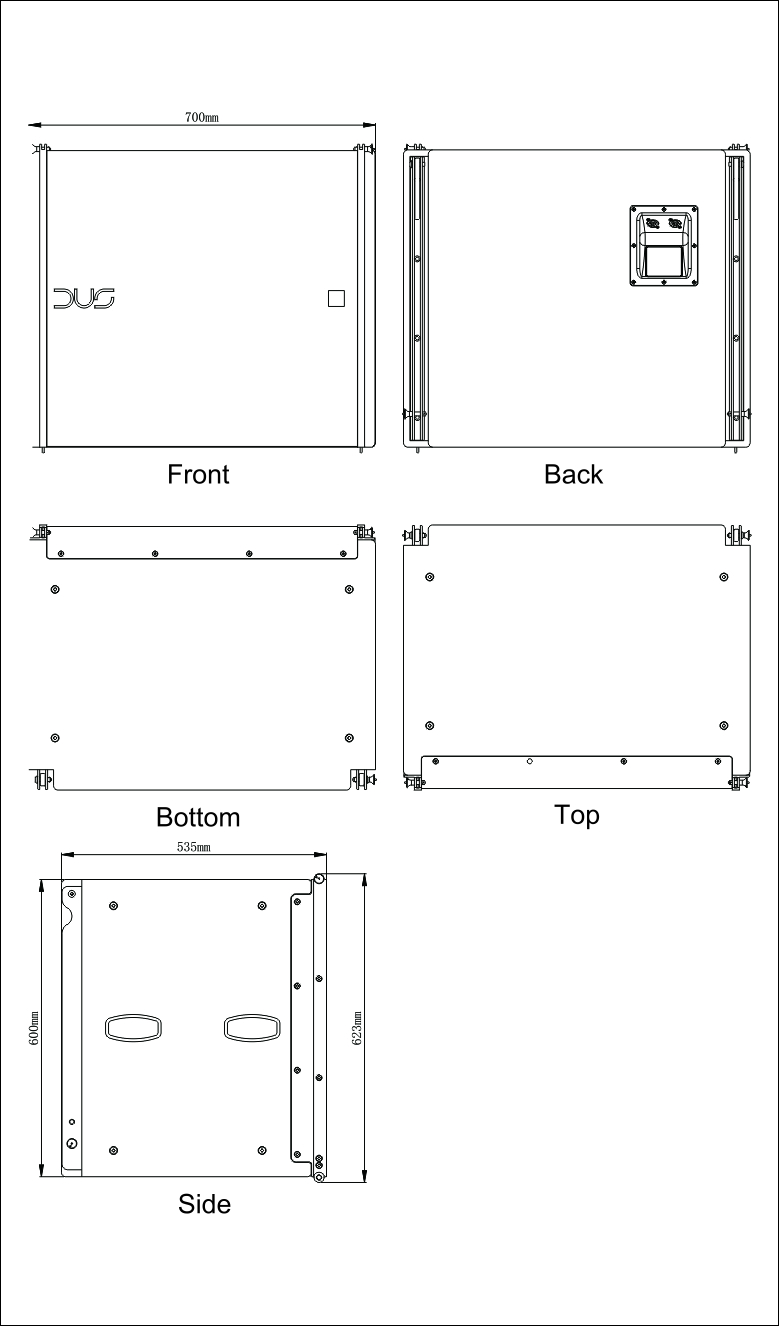

 Drawings
Technical Drawings
All information is Copyright. DU'S AUDIO CO., LTD.
JPEGDWGPDF
 Recommended Speakers
 Download
File Description Userguide
QX10SW Product brochure for the QX10SW. DOWNLOAD
