- Line Array Loudspeakers&Subs
- * 1x18″ Subwoofer;
* The Maximum SPL can be reach to 132dB;
* Can use with QX10.
QH10SW
- Product
- The DU`S Audio Experience
- 首页 > Product by Series > Speakers > Q Series
QH10SW| Acoustic Performance | |
| System | Subwoofer |
| Frequency Range(-10dB) | 35Hz-300Hz |
| Frequency Response(±3dB) | 45Hz-250Hz |
| Rated Power | 600W |
| Maximum Power | 2400W |
| Sensitivity(1w/1m) | 98dB |
| Maximum SPL | 132dB |
| Loudspeakers | 1x18″ |
| X-over | 120Hz/24dB/octave |
| Nominal Impedance | 8Ω |
| Connections | 2xNLT4 ±1 |
|
Physical Performance |
|
| Hoisting Way | Hoisting Point with 4 |

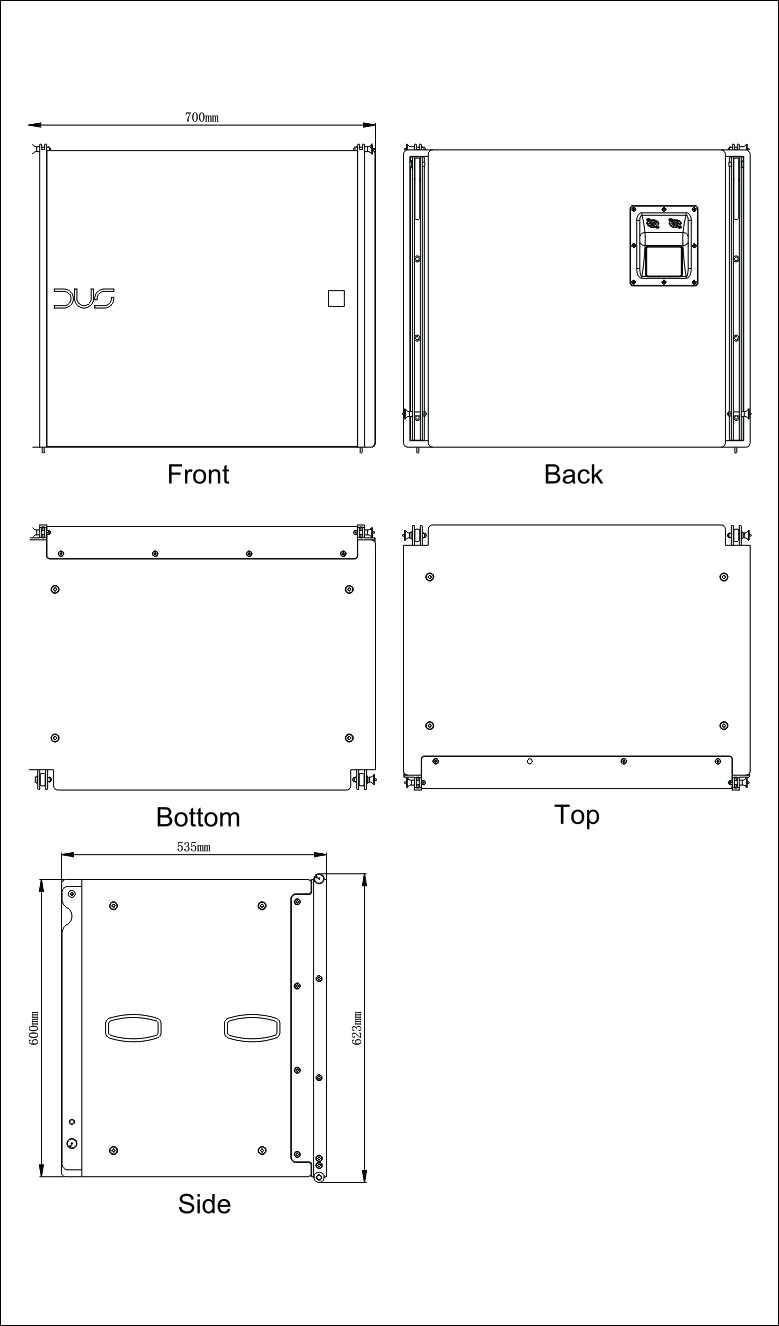

| Size(WxDxH) | 700 x 535 x623(mm) |
| Weight | N.W: 48.4kg R.W: 52.5kg |
 |
|---|
| File | Description | Userguide |
|---|---|---|
| QH10SW | Product brochure for the QH10SW. | DOWNLOAD |
